Die casting lubricants

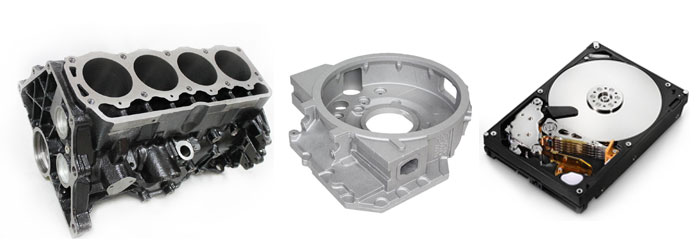

Die releasing agent for aluminum die casting mainly for automotive parts (ICE,HEV, PHEV, BEV), motorcycle parts, furniture and electric parts, suitable with varieties of material. MORESCO’s GRAPHACE mold releasing agents have an excellent lubricity and control temperature stability to prevent defective products. GRAPHACE series provide wide varieties properties which can meet with serve to all kind of machine and processes.
Moreover, MORESCO has an in-house technical service in order to ensure the high quality of services to customers.
In addition, MORESCO group has develop stage of art, Minimum Spray Amount Die-lubricant which can serve Sustainable Development Goals (SDGs) policy and currently Lowest Carbon Footprint of Die lubricant product.
Contact us for solving deflect part, Improve part appearance, Stabilize quality of part, Controllable cycle time, Mold life last longer and minimize overall cost.
Machine & Process
- Hot Chamber
- Cold Chamber
- Squeeze die casting
- Giga Press
- High Pressure Die Casting (HPDC)
- Low Pressure Die Casting (LPDC)
- Gravity die casting
- Paintable part
- Special part
- Thinness wall
- High Thickness
- Complex shape
- Various type of metal alloy
Solution for
- Soldering
- Galling
- Cold flow
- Cold Line
- Spray clogging
- Blister
- Gas porosity
- Shrinkage porosity
- Minimum mold polishing
- Extend mold life
- Cycle time set & control
Water based
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE EHS |
High adhesion on a die-mold, Wide dilution range |
150 – 350 C0 |
Paintable |
Small - Medium |
GRAPHACE ELP-100S |
Less porosity and high adhesion on a die-mold. |
150 – 350 C0 |
Paintable |
Small - Medium |
GRAPHACE GL-320S |
High adhesion on a die-mold, Slightly high mold temp. |
150 – 350 C0 |
Paintable |
Small - Medium |
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE GL-6300 |
Reducing soldering and galling on a large size machine. |
250 - 350 C0 |
Paintable |
Large size |
GRAPHACE GL-641S |
Reducing soldering and galling on a large size machine. |
> 350 C0 |
Non-Paintable |
Large size |
GRAPHACE GL-740S |
Reducing soldering and galling on a large size machine. |
> 350 C0 |
Non-Paintable |
Large size |
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE NS-660 |
For painting parts and silicone-free parts excellent adhesion properties |
Wide range Cover temperature |
Paintable |
Medium |
GRAPHACE NS-612 |
For painting parts and silicone-free parts Electronic part such as Hard Disk Drive (HDD) |
Wide range Cover temperature |
Paintable |
Medium |
Oil based
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE EOL-16 |
Excellent releasing agent by special additives. Applicable to electrostatic spray system. |
Wide range |
Non-paintable |
Small - Large |
For Small Amount Spray System (Undilution Solution type)
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE MQ-100 |
No waste water, Extend Mold life, Good metal flow. |
150 – 300 C0 |
Paintable |
Small - Middle |
GRAPHACE MQ-500 |
Higher heat stability, Extend Mold life, Good metal flow |
150 – 400 C0 |
Non-Paintable |
Small - Large |
GRAPHACE MQ-600 |
Low gas porosity, Excellent releasing, Good metal flow |
150 – 400 C0 |
Non-Paintable |
Medium - Large |
GRAPHACE MQ-W |
Solution type, Suit with structural part, Excellent metal flow, suit thickness aluminum parts |
150 – 300 C0 |
- |
All size |
Powder release agent
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Appearance |
||
ASTROLUBE NDP-1 |
Low speed casting with heat retaining properties, produces a low amount of gas |
Wide cover range |
Power |
Small - Large |
ASTROLUBE GW-42 |
Powder release agent can be used for squeeze casting, low pressure casting, gravity casting and aluminum casting |
Wide cover range |
Power |
Small - Large |
ASTROLUBE ASK-10 |
Excellent mold adhesion properties |
Wide cover range |
Power |
Small - Large |
For squeeze and low speed processes
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE RK-1 |
High heat shielding and high anti-soldering property. Large and thickness part, low porosity, for structural part |
Wide cover range |
n/a |
For slow injection die cast, squeeze die cast. |
GRAPHACE RK-X |
High heat shielding and high anti-soldering property. Large and thickness part, for suspension part. |
Wide cover range |
n/a |
For slow injection die cast, squeeze die cast. |
For magnesium
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE MK-700 |
Heat retaining properties, metal flow properties. Avoid problems such as product distortion and breakage. |
Suit with operation range |
n/a |
Small - Medium |
For zinc
Product Name |
Characteristics |
Machine size |
||
Usage |
Operation range |
Paintable |
||
GRAPHACE HC-200 |
This product can be diluted in kerosene or water and has an established reputation for low mold soiling |
Cover all operation range |
n/a |
Small - Medium |
We have other products. Feel free to contact us for any questions.
Plunger lubricants
Plunger lubricant is a key lubricating agent to the Plunger Rod & Sleeve operating in die casting machines. MORESCO’s plunger lubricants NEOCASTER have an excellent lubricity. High temperature stability and well spreading properties.
These properties will last long the machine parts e.g. plunger tip and Sleeve and avoiding the product defect caused by improperly use of plunger lubricant. NEOCASTER has provided wide varieties of products to meet with all requirements.Solution for
- Clean work place
- Low Flame height
- Low Smoke
- Last long equipment life
- No Corrosion
- No clogging to nozzle
- No entrapped gas
- Avoid porosity
- User friendly
- Minimize oil content
- Vertical shot
- Smooth shot
- Slow shot / Fast shot
- Stable Shot Profile
- Suitable with varieties apply method
- Serve to all machine sizes
Oil based
Product name | Characteristics | Visocosity mPa·s (30℃) |
Application |
NEOCASTER B-200A | Graphite is dispersed into the base oil | 1100 | Small to large size DCM |

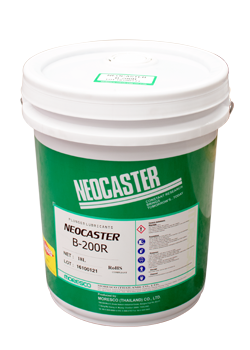

NEOCASTER B-200R | 2500 |
Product name | Characteristics | Visocosity mPa·s (30℃) |
Application |
NEOCASTER PWS-300 | Non-graphite solid lubricant is dispersed into the base oil. | 450 | Small to middle size DCM |
Product name | Characteristics | Visocosity mPa·s (30℃) |
Application |
NEOCASTER N-25 | Oil base with reduce flame height | 1100 | Small to large size DCM |

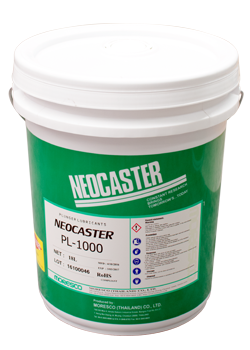

NEOCASTER PL-1000 | 900 |
Water based
Product name | Characteristics | Visocosity mPa·s (30℃) |
Application |
NEOCASTER B-9100 | Thermal stability with good lubricity | 1900 | Squeeze die casting + Small to middle size DCM |
NEOCASTER PW-360T | 3000 |
Product name | Characteristics | Visocosity mPa·s (30℃) |
Application |

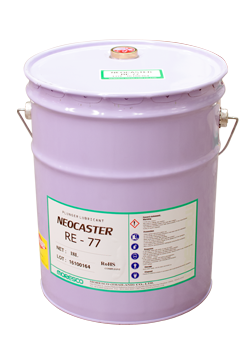

NEOCASTER RE-77 | Less gas generation. Better lubricity than the other water based lubricants. Wide range usage | 900 | Small to middle size DCM |
Product name | Characteristics | Visocosity mPa·s (30℃) |
Application |
NEOCASTER RE-77J | Less gas generation. Suit to electronic part production | 900 | Small to large size DCM |
NEOCASTER CF-W2 | Less dirt, Less fire, Less gas generation | 27 | Small to middle size DCM |
